自定义 Excalidraw 脚本 - 画板局部或者全局播放动画

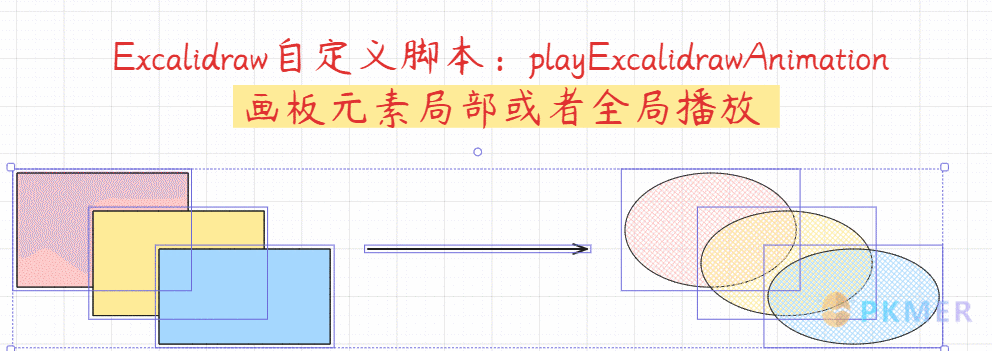

选中元素后局部播放

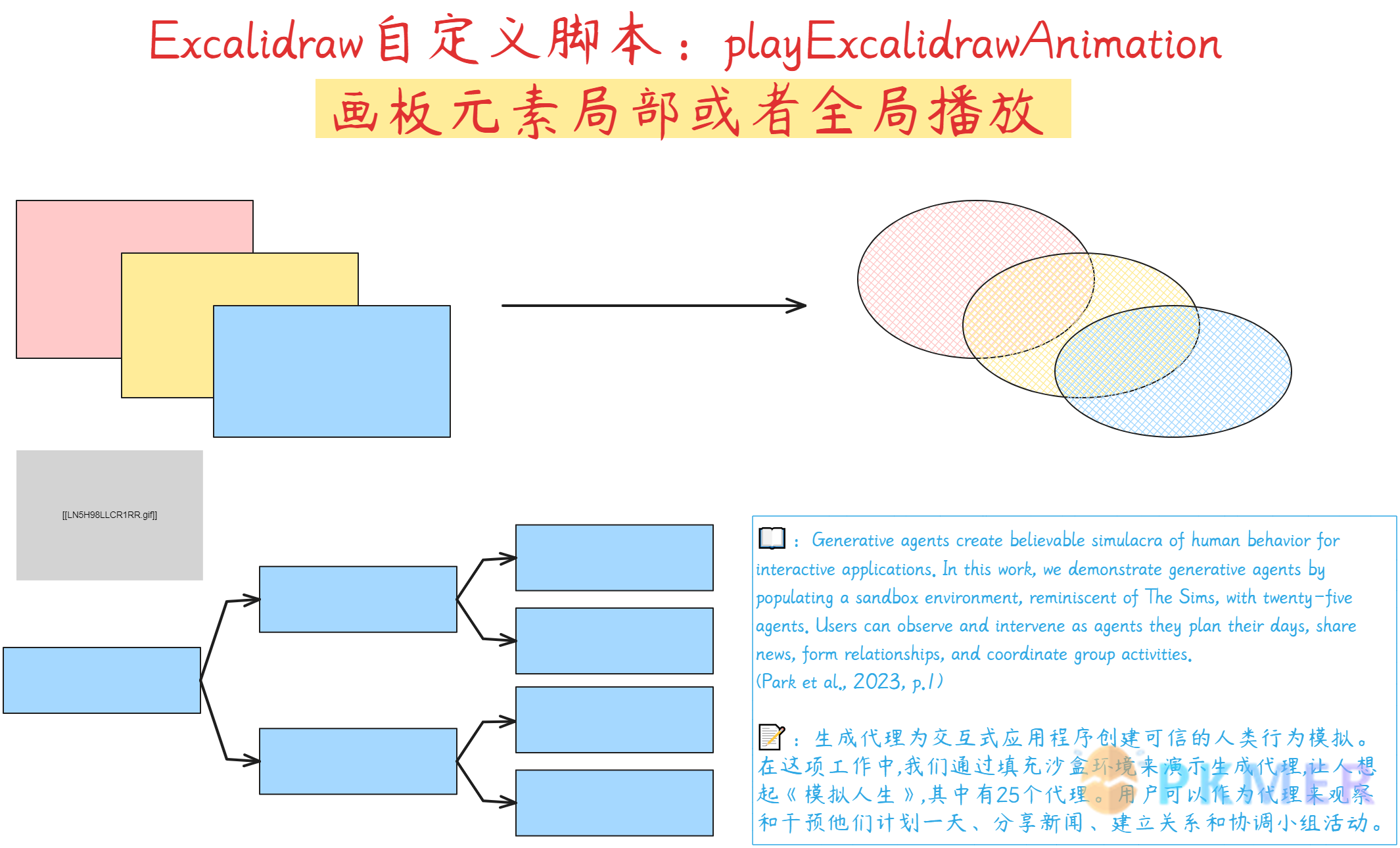

不选中元素可以全局播放

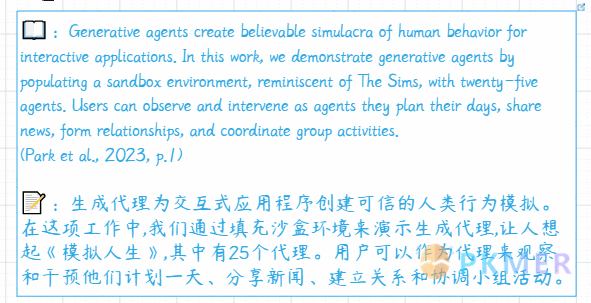

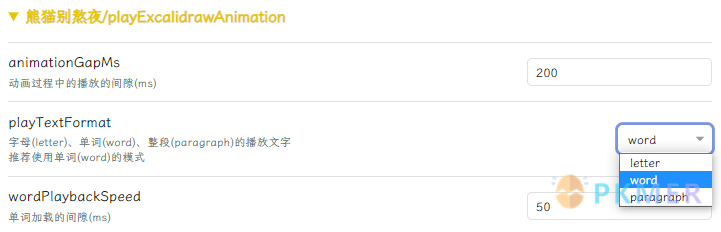

文字播放的选项

playExcalidrawAnimation 脚本

let api = ea.getExcalidrawAPI();

let settings = ea.getScriptSettings();
//set default values on first run
if (!settings["animationGapMs"]) {
    settings = {
        "animationGapMs": {
            value: 400,
            description: "动画过程中的播放的间隙(ms)",
        },
        "playTextFormat": {
            value: "word",
            valueset: ["letter", "word", "paragraph"],
            description: "字母(letter)、单词(word)、整段(paragraph)的播放文字<br>推荐使用单词(word)的模式",

        },
        "wordPlaybackSpeed": {
            value: 50,
            description: "单词加载的间隙(ms)",
        }
    };
    ea.setScriptSettings(settings);
}


// 排除一些指定元素
const selectedEls = ea.getViewSelectedElements().filter(el => !(el.type == "frame"));

const allEls = ea.getViewElements().filter(el => !(el.type == "frame"));


function elementsSort(elements, key = 'version') {
    // default ordered by uptated time
    // [older -> newer]
    let result = elements.slice(0);
    return result.sort((a, b) => a[key] - b[key]);
}


let updatedEls;

if (Object.keys(selectedEls).length !== 0) {
    updatedEls = elementsSort(selectedEls, 'y');
    updatedEls = elementsSort(selectedEls, 'x');
} else {
    if (confirm("是否进行全局播放？")) {
        updatedEls = elementsSort(allEls, 'y');
        updatedEls = elementsSort(allEls, 'x');
    } else {
        new Notice(`❎退出播放！`, 2000);
    }
}


for (let el of updatedEls) {
    // 逐步显示元素
    el.opacity = 0;
    ea.copyViewElementsToEAforEditing([el]);
    ea.addElementsToView();
}

async function animateElements() {
    for (let el of updatedEls) {
        // 逐步显示元素
        await new Promise(resolve => setTimeout(resolve, 300));
        // el.clear()

        if (el.type == "text") {
            // 单词添加时间间隔(ms)
            let spaceTime = settings["wordPlaybackSpeed"].value;

            // 保存原始数据
            let elText = el.originalText;
            let elOriginalText = el.originalText;
            let elRawText = el.rawText;

            let words = "";
            let wordList = elOriginalText.split("");

            for (let word of wordList) {

                if (settings["playTextFormat"].value == "paragraph") break;
                el.opacity = 100;
                words += word;
                el.originalText = el.rawText = el.text = words;

                if (/[^a-zA-Z0-9]/g.test(word)) {
                    ea.copyViewElementsToEAforEditing([el]);

                    // 添加元素但不保存
                    ea.addElementsToView(false, false);
                    await new Promise(resolve => setTimeout(resolve, spaceTime));
                } else {
                    if (settings["playTextFormat"].value == "word") continue;
                    // 用于分割单词的
                    ea.copyViewElementsToEAforEditing([el]);
                    ea.addElementsToView(false, false);
                    await new Promise(resolve => setTimeout(resolve, spaceTime));
                    // continue
                }

            }

            el.opacity = 100;

            // 还原原始数据
            el.originalText = elOriginalText;
            el.rawText = elRawText;
            el.text = elText;

            ea.copyViewElementsToEAforEditing([el]);
            // 添加但不保存
            ea.addElementsToView(false, false);
            await new Promise(resolve => setTimeout(resolve, spaceTime));

        } else {
            await new Promise(resolve => setTimeout(resolve, settings["animationGapMs"].value));
            el.opacity = 100;
            ea.copyViewElementsToEAforEditing([el]);

            // 添加元素并保存
            ea.addElementsToView(false, false);
        }

    }

    for (el of updatedEls) {
        el.opacity = 100;
        ea.copyViewElementsToEAforEditing([el]);

        // 添加元素并保存
        ea.addElementsToView(false, true);
    }
    new Notice(`✅回放已完成！`, 2000);
}

animateElements();
